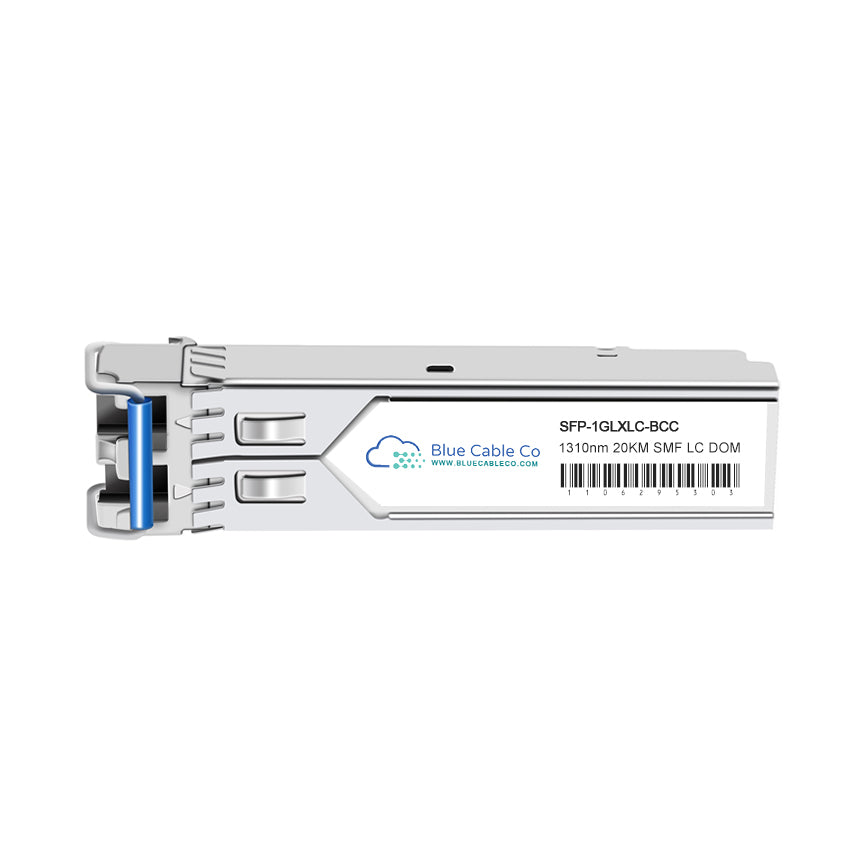

• Silver SFP-1GLXLC-BCC transceiver with blue LC connector and Blue Cable Co label
1 1

Blue Cable Co

SFP-1GLXLC-BCC | Moxa Compatible 1GB Single-Mode 10km (1000BASE-LX)

SFP-1GLXLC-BCC | Moxa Compatible 1GB Single-Mode 10km (1000BASE-LX)

SFP-1GLXLC-BCC

In stock:28

$56.10 AUD
$56.10 AUD
$56.10 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

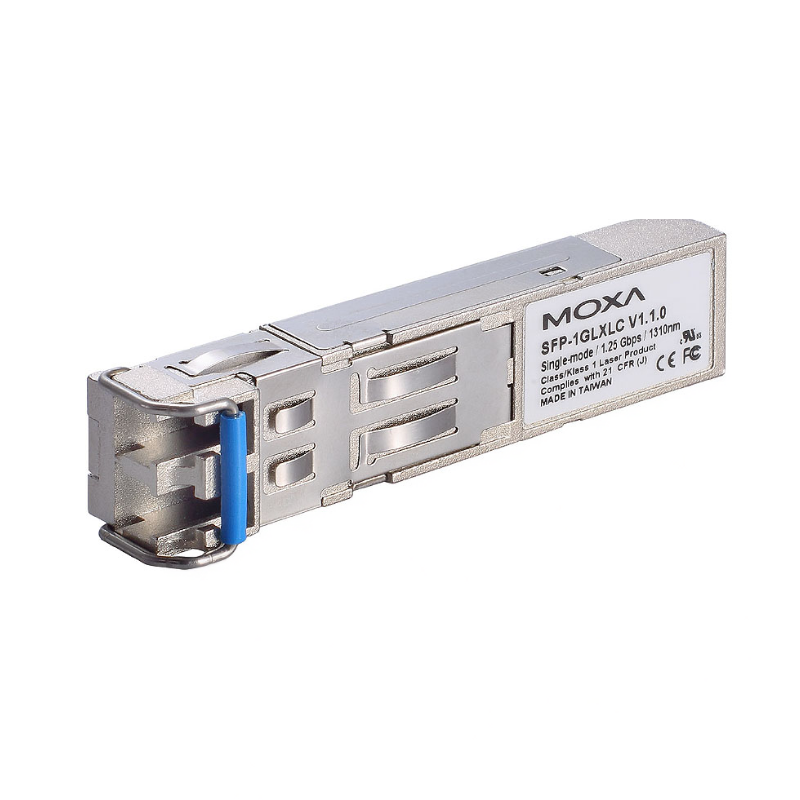

The SFP-1GLXLC-BCC is a drop-in compatible replacement for the Moxa SFP-1GLXLC. This transceiver plugs directly into Moxa Ethernet switches and operates as a plug-and-play solution for Gigabit Ethernet applications requiring single-mode fibre connectivity. - IEEE 802.3z 1000BASE-LX standard compliance guarantees interoperability with any 1000BASE-LX port - SFP form factor with 1.25 Gb/s data rate, 1310nm wavelength, single-mode fibre, 10km typical reach - LC duplex connector for standard single-mode OS1/OS2 fibre cable infrastructure - Digital Diagnostic Monitoring (DDM/DOM) support for real-time optical parameter visibility - 0 to 60°C commercial operating temperature range suitable for industrial Ethernet applications - Hot-swappable design with differential LVPECL inputs and outputs per SFP MSA SFF-8477 specification

Features

• IEEE 802.3z 1000BASE-LX compliance ensures interoperability with any standards-compliant Gigabit Ethernet port regardless of manufacturer
• 1310nm long-wavelength transmission over duplex single-mode fibre at 1.25 GBd symbol rate with 8B/10B encoding
• Digital Diagnostic Monitoring (DDM) provides real-time access to optical transmit power, receive power, temperature, bias current, and supply voltage via I2C interface per SFF-8472 MSA
• Hot-swappable SFP MSA form factor allows insertion and removal without powering down the host switch or router
• Differential LVPECL electrical interface with TTL signal detect indicator for robust link status monitoring
• Optimised for OS1 and OS2 single-mode fibre infrastructure with typical 10km reach over standard G.652 fibre under normal dispersion and attenuation conditions
• Class 1 laser product compliant with EN 60825-1 safety standard for safe deployment in enterprise and industrial network environments

Warranty

5-Year Advanced Warranty on All Blue Cable Co® Products

Blue Cable Co® offers a comprehensive 5-Year Advanced Warranty on all our branded products. Our advanced warranty ensures fast, hassle-free replacements to keep your network running smoothly. If a fault occurs, we'll deliver a replacement part before you return the faulty itemminimising downtime and giving you complete peace of mind.

Choose Blue Cable Co® for reliable, high-quality network components backed by industry-leading warranty support.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Compatible SFP Selector

Technical Specifications

Brand: Blue Cable Co
BCC SKU: SFP-1GLXLC-BCC
Compatible Replacement For: SFP-1GLXLC
Compatibility: Moxa compatible
Lab Testing: Tested in Sydney, Australia
Warranty: 5-year advanced hardware replacement (Blue Cable Co)
Form Factor: SFP
Data Rate: 1.25 Gb/s
Wavelength: 1310nm
Fibre Type: Single-Mode (SMF)
Connector Type: LC duplex
DOM Support: Yes (Digital Diagnostic Monitoring)
Standards: IEEE 802.3z 1000BASE-LX, SFP MSA SFF-8477
Max Reach: Up to 10 km over single-mode fibre (subject to fibre quality and link conditions)
Operating Temperature: 0 to 60°C

FAQs

Q: Will this work in place of the Moxa SFP-1GLXLC?
A: Yes. The SFP-1GLXLC-BCC is a direct replacement for the Moxa SFP-1GLXLC. It conforms to the same IEEE 802.3z 1000BASE-LX standard, uses the same SFP form factor, operates at 1.25 Gb/s over single-mode fibre at 1310nm, and delivers the same 10km reach. It is plug-and-play compatible with Moxa switches and routers.

Q: Which Moxa switches and routers support this transceiver?
A: This transceiver is compatible with any Moxa device that accepts SFP modules and supports 1000BASE-LX or Gigabit Ethernet SFP ports. This includes the ICS-G7848/G7850/G7852, ICS-G7748/G7750/G7752, ICS-G7826/G7828 series, IKS-G6524/G6824 series, EDS-G508E/G512E/G516E, EDS-518A series, EDS-510A series, and IM-G7000 interface modules, among others. Consult your Moxa platform datasheet to confirm SFP slot availability.

Q: What type of fibre cable and connector do I need for 10km transmission?
A: You need duplex single-mode fibre cable (OS1 or OS2 grade, ITU-T G.652 compliant) with LC/UPC connectors on both ends. The transceiver uses two fibres: one for transmit (1310nm Tx), one for receive (1310nm Rx). Actual reach depends on fibre quality, splice loss, connector insertion loss, and total link attenuation. A typical link budget of 8 to 10 dB supports 10km over clean, low-loss single-mode fibre.

Q: Can I access Digital Diagnostic Monitoring data on this transceiver?
A: Yes. This transceiver supports DDM (also called DOM) per SFF-8472 MSA. If your Moxa switch or network operating system supports DDM, you can read real-time optical parameters including transmit power, receive power, module temperature, laser bias current, and supply voltage. This data is accessible via CLI, SNMP, or management interface depending on your platform and helps with proactive link health monitoring and troubleshooting.

Q: What happens if I exceed the 10km distance specification?
A: Beyond 10km, the optical power budget may be insufficient, leading to increased bit error rate, intermittent link drops, or complete loss of signal. The transceiver typically provides 8 to 10 dB of link budget. Exceeding 10km requires higher-quality fibre with lower attenuation (e.g., premium OS2), fewer splices, and clean connectors. For distances beyond 10km, consider a 1000BASE-LH or 1000BASE-EX module with higher transmit power and improved receiver sensitivity.

Compatible SFP Selector

Need a Compatible SFP or QSFP Transceiver?

Use the Blue Cable Co Compatible SFP Selector to quickly filter by vendor compatibility, speed, form factor, fibre type, distance and connector and only see options that exist in our range.
Fully tested. No brand-tax. Sydney re-coding available if required.

Find Compatible Transceivers

100% Compatible With Equipment From Major Vendors

Coded & tested in our state of the art lab in Sydney

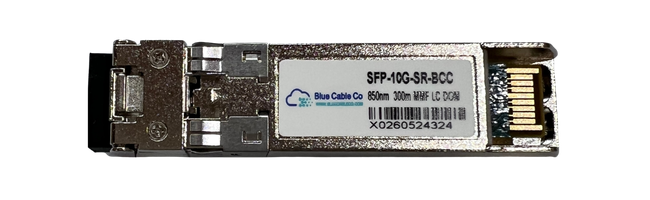

Silver-colored sfp-10g-sr-bcc transceiver module with a white label featuring blue and black text, designed for 850nm wavelength optical communication.
