ATEN RC1901W-AT | RC1900 8U Wall Mount Rack Enclosure, 50kg, 19in, AC Fan

ATEN RC1901W-AT | RC1900 8U Wall Mount Rack Enclosure, 50kg, 19in, AC Fan

RC1901W-AT

Stock Status: Enquire

$533.00 inc. GST
$484.55 ex. GST
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

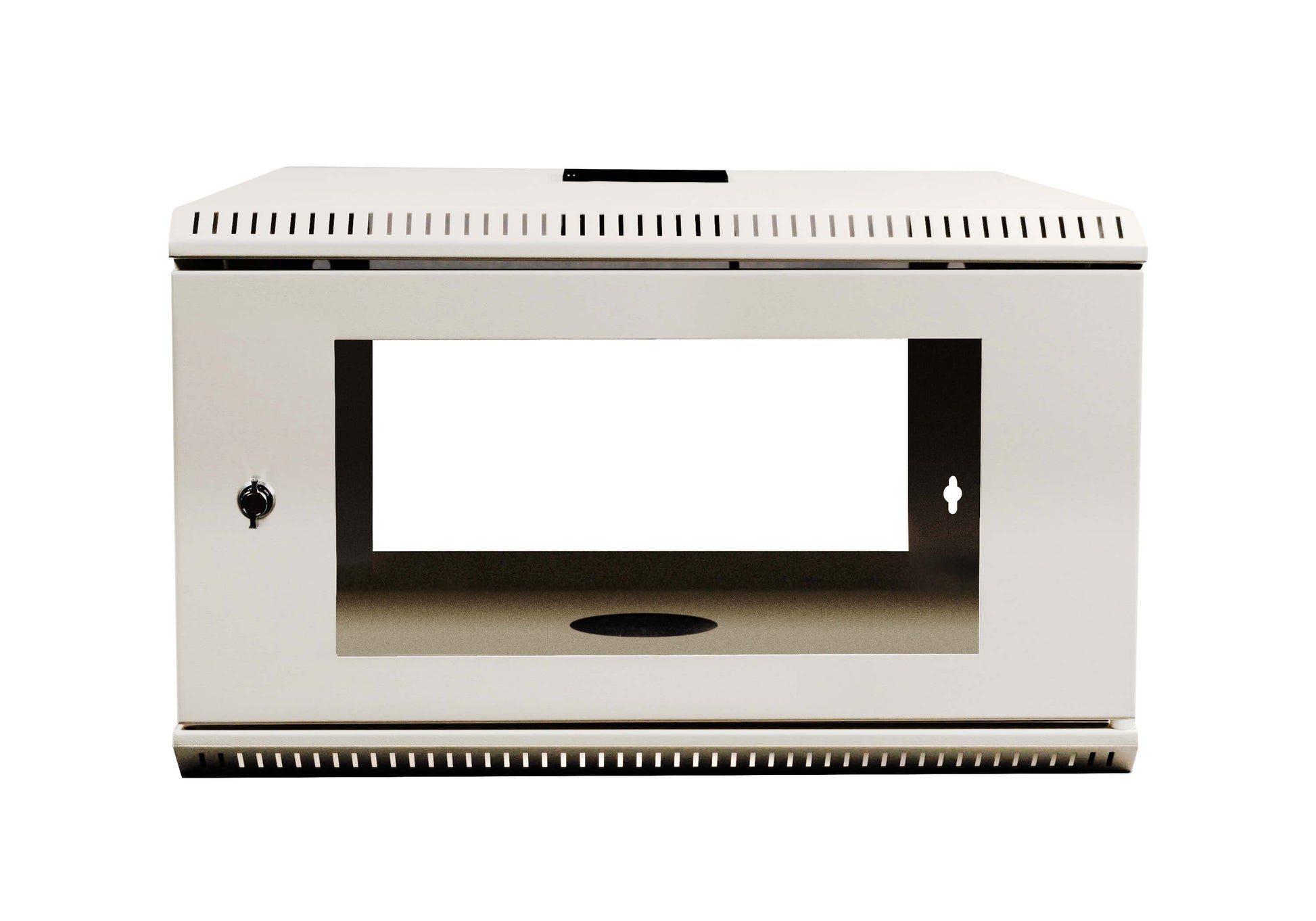

The ATEN RC1900 8U Wall Mount Rack Enclosure is a space-saving solution for organisations needing to deploy 19-inch IT, networking, or surveillance equipment in areas without dedicated floor space. Built from robust bent SPCC steel with a 50 kg load capacity, it is ideal for classrooms, retail environments, security rooms, and transit facilities. A top-mounted 120V/230V AC fan combined with 45° slant heat dissipation vents ensures active cooling and reliable equipment protection.

Compliant with EIA/ECA-310-E standards and certified to UL and CE requirements, the RC1900 installs via hanging holes on the back panel with wall plugs included for straightforward mounting. Cable management holes on both sides simplify routing and reduce clutter. Visit iptrading.com.au to secure your order — enterprise-grade hardware with expert support.

Features

- Off-the-ground wall-mount design overcomes floor spacing and cabling constraints

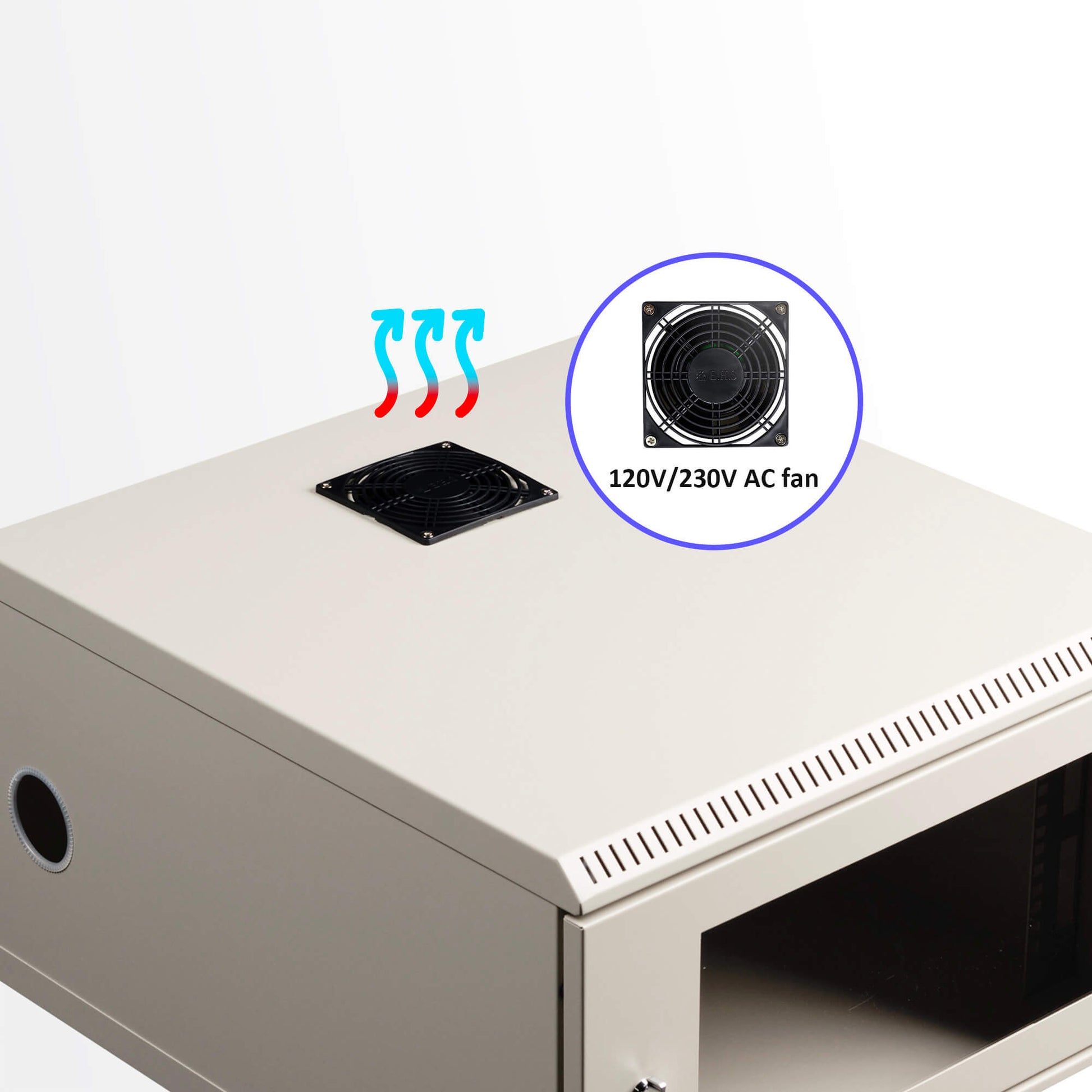

- Top-mounted 120V/230V AC fan provides active cooling to protect sensitive equipment
- 45° slant heat dissipation holes on front top and bottom for passive convection airflow
- Cable management holes on both sides of the enclosure simplify routing and reduce clutter
- Back panel hanging holes with included wall plugs enable fast, secure installation
- Accommodates standard 19-inch rack-mount equipment across IT, networking, and surveillance applications
- Suitable for classrooms, retail environments, transit facilities, and security rooms
- EIA/ECA-310-E compliant construction ensures broad equipment compatibility
- UL and CE certified for safety and regulatory compliance

Warranty

ATEN products sold by IP Trading are backed by a 24-month warranty against material defects and faulty workmanship from the date of shipment. Included accessories such as adapters and cables are covered for the same 24-month period, while batteries are covered by a 12-month warranty.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Rack height: 8U

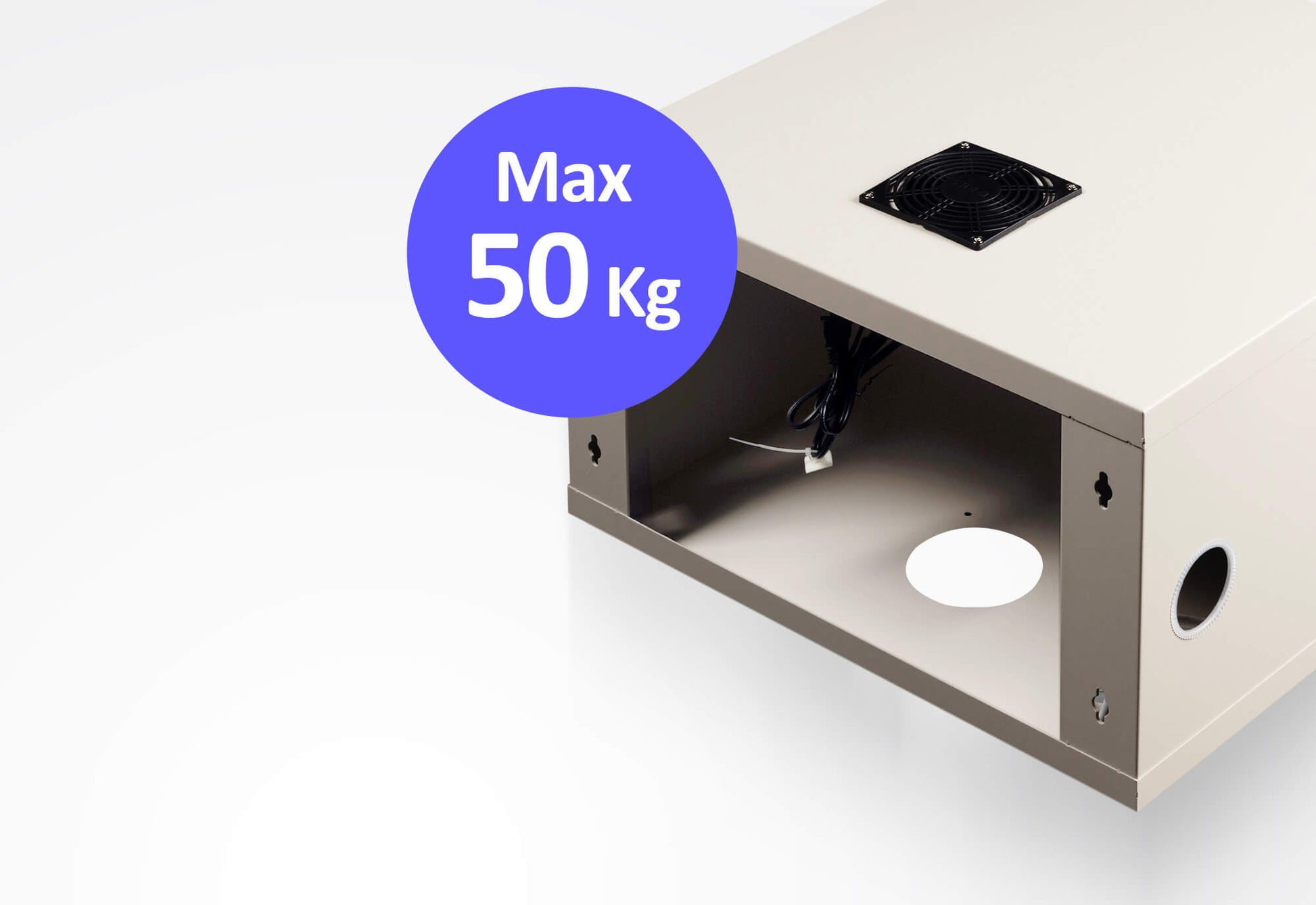

- Maximum load capacity: 50 kg
- Equipment compatibility: 19-inch (EIA/ECA-310-E compliant)
- Construction material: Bent SPCC steel
- Cooling: Top-mounted 120V/230V AC fan
- Heat dissipation: 45° slant holes on front top and bottom
- Cable management: Side cable holes on both sides
- Installation type: Wall-mount / suspended
- Mounting: Hanging holes on back panel left and right sides, wall plugs included
- Certifications: UL, CE
- Patents: M377678, M385174, M513193

FAQs

Q: What is the maximum equipment load the RC1901W can support?
A: The ATEN RC1900 8U Wall Mount Rack Enclosure supports a maximum load capacity of 50 kg, making it suitable for multiple networking switches, patch panels, or surveillance equipment installations.

Q: What size equipment does this rack accommodate?
A: The RC1901W is compatible with standard 19-inch rack-mount equipment and is constructed to EIA/ECA-310-E compliance standards, ensuring broad compatibility with networking, AV, and security hardware.

Q: How is the RC1901W cooled?
A: It features a built-in top-mounted 120V/230V AC fan for active heat dissipation, supplemented by 45° slant ventilation holes on the front top and bottom panels to support passive convection cooling.

Q: How is the RC1901W mounted to the wall?
A: The enclosure includes hanging holes on the left and right sides of the back panel, and wall plugs are included in the box for straightforward wall installation without requiring additional hardware.

Q: What environments is this wall mount rack suited for?
A: The RC1900 is designed for space-constrained deployments such as classrooms, train platforms, retail stores, security monitoring rooms, and piping or utility rooms where floor-standing racks are impractical.

Q: Can I purchase the ATEN RC1901W in Australia through IP Trading?
A: Yes. IP Trading (iptrading.com.au) is an Australian B2B IT hardware reseller stocking ATEN products including the RC1901W, with expert pre-sales support to help you select the right rack solution for your deployment.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
